GOSHAWK PLANS

Side views, left and right, to aid in the construction of 1/32nd scale T-45C. Panel lines, fastener and rivet patterns were exhaustively researched for the most accurate locations. The plans are drawn to fit the Revell BAe Hawk T.1A kit (No. 04284), so that the printed plans may be used directly on the model as patterns for reshaping of the nose and locating details.

Plans must be printed at 100% to fit the model properly. Document size is 16 in (40.64 cm) Wide X 14 in (35.56 cm).



goshawk plans

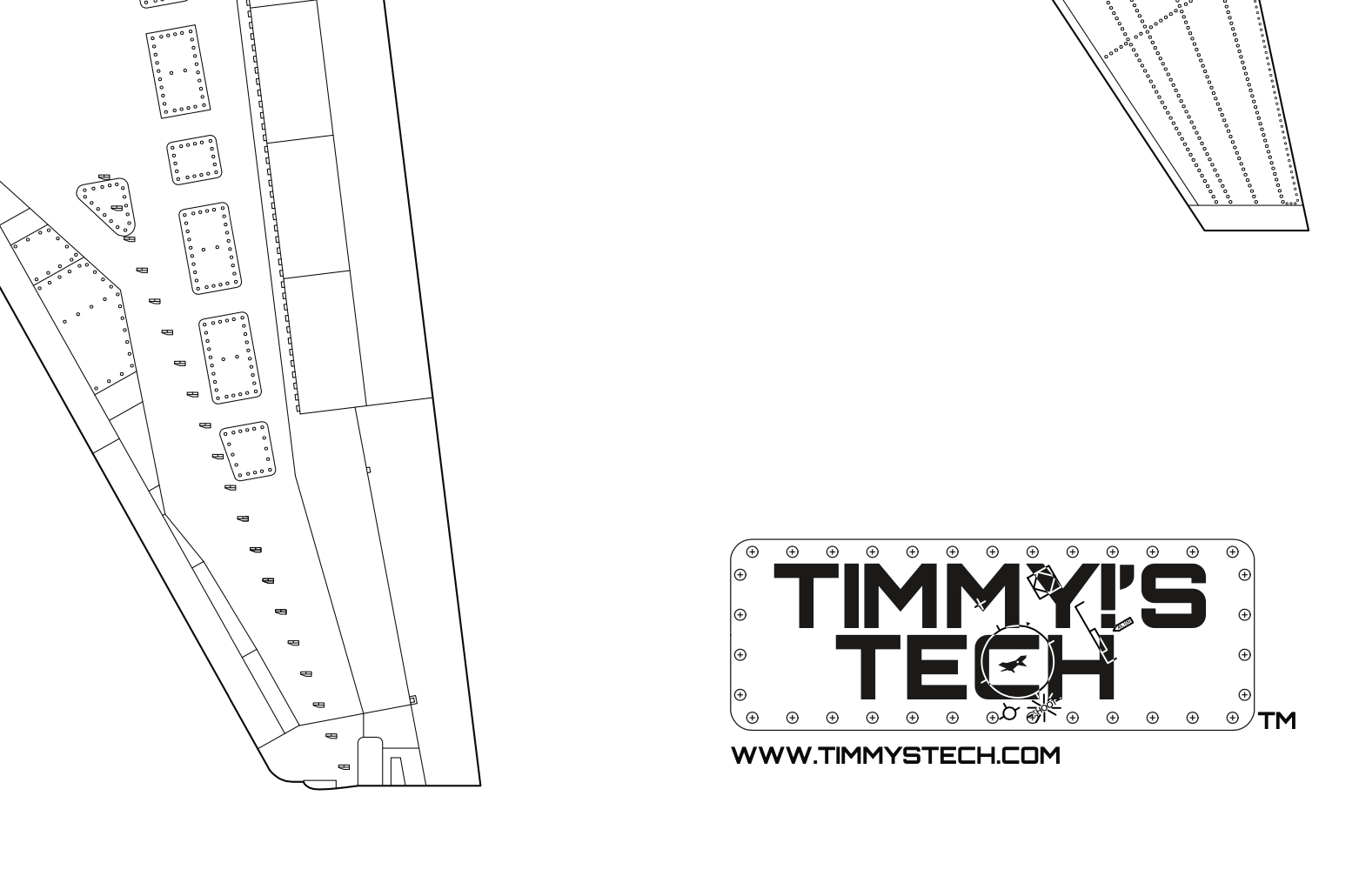

Top view, to aid in the construction of 1/32nd scale T-45C. As with the side views these plans located the details visible on the top of the jet. Wings and stabilators are drawn to fit the kit and true to plan plane to help locate detail and wing and stabilator shape modifications. Details for the top of the fuselage were also depicted.

Plans must be printed at 100% to fit the model properly. Document size is 16 in (40.64 cm) Wide X 14 in (35.56 cm).



goshawk plans

Bottom view, to aid in the construction of 1/32nd scale T-45C. These plans were primarily useful for locating the modified landing gear doors.

Plans must be printed at 100% to fit the model properly. Document size is 16 in (40.64 cm) Wide X 14 in (35.56 cm).
